Vitrifrigo DIY Kit 210/70 S7 + ND50ORV | 210L Fridge or 70L Freezer

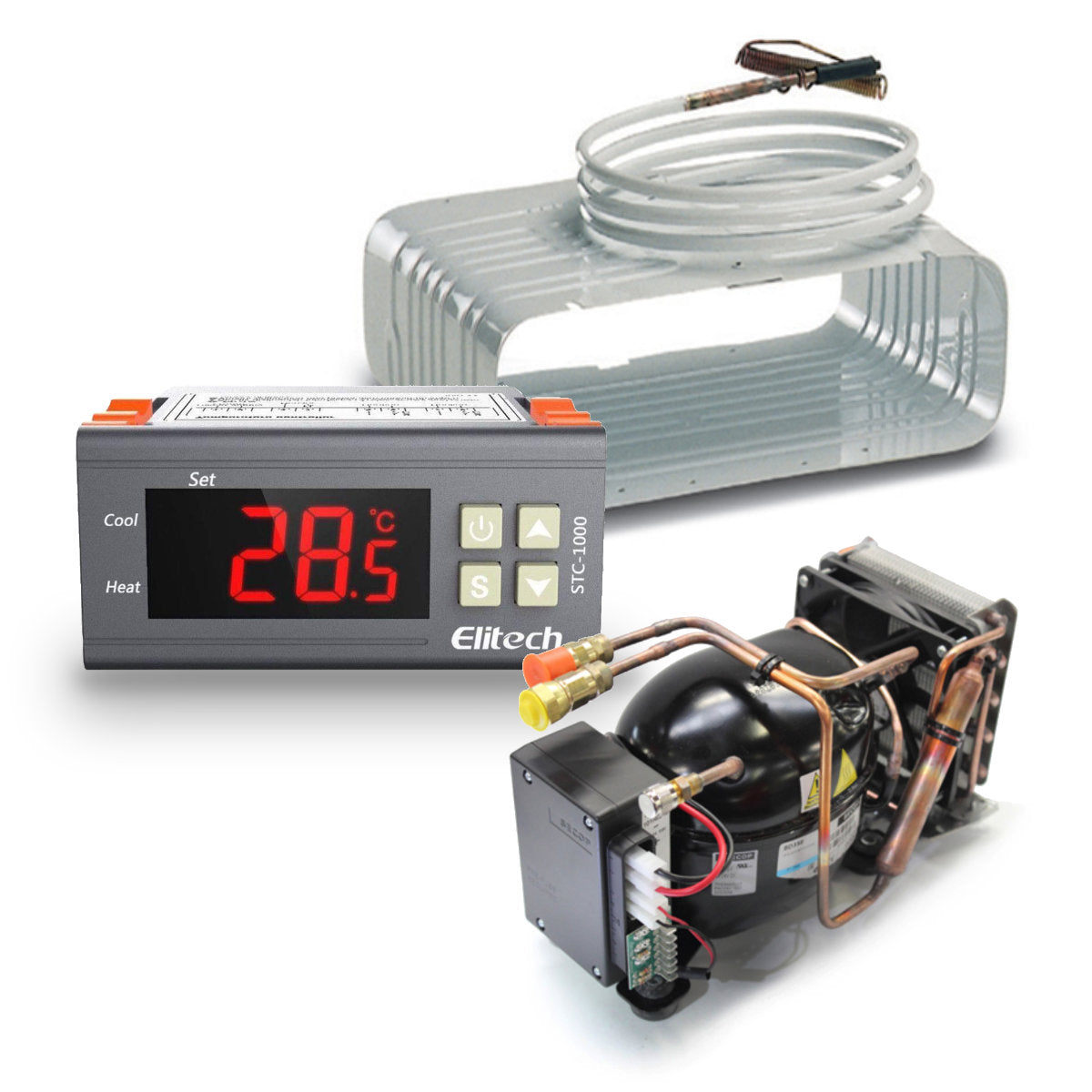

This Vitrifrigo DIY Kit is made up of the S7 box evaporator, ND50ORV Cooling Unit, and digital thermostat.
This Kit is suitable for a 210L Fridge or 70L Freezer.
PLEASE CHECK STOCK BEFORE ORDERING 1300 668 293

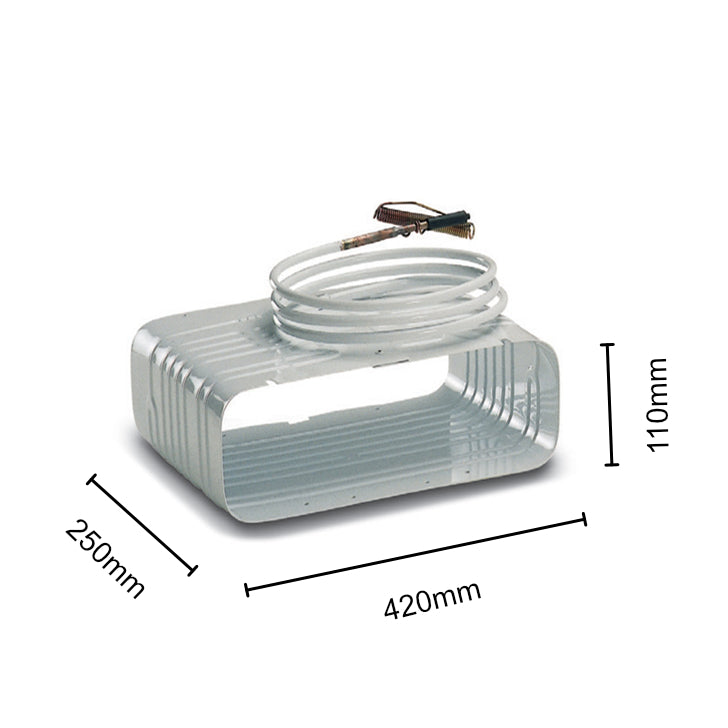

S7 Box Evaporator
Cooling systems with boxed evaporators are recommended for all installations where a freezer compartment is required, leaving the remainder of the box as refrigerator space. Boxed evaporators with bottom piece and lids can be placed horizontally or vertically according to requirements and available space.
Width: 420mm
Height: 110mm
Depth: 250mm

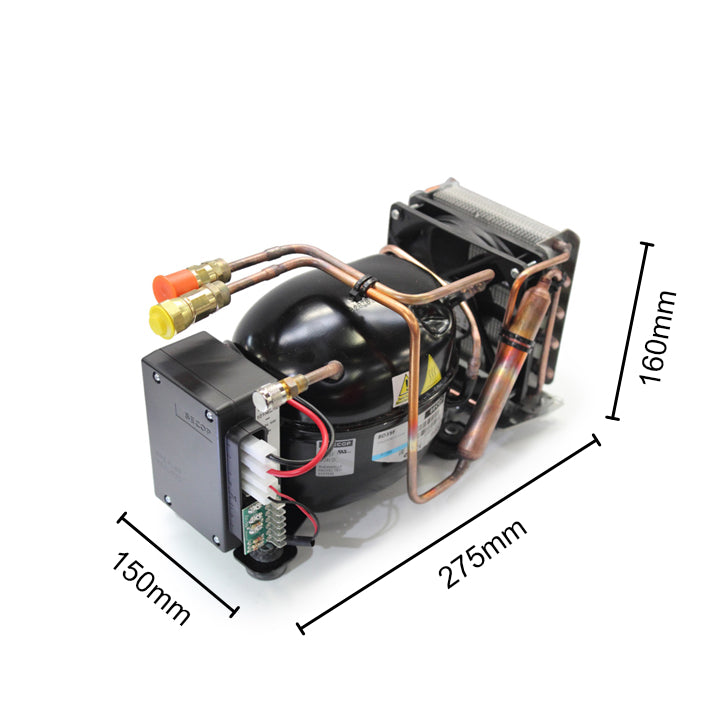

ND50ORV Cooling Unit
Width: 275mm
Height: 160mm
Depth: 150mm
Digital Thermostat
DIY Tips & Tricks
- A well insulted box with minimum 50mm wall thickness is recommended.
- Top loading configurations enable maximum cool to be retained when opened and closed frequently.
- The door must be well sealed to prevent the evaporator plate icing up.
- The compressor needs to be well ventilated for optimum performance.
