Vitrifrigo DIY Kit 200/70 PT13 + ND50ORV | 200L Fridge or 70L Freezer
- Description
Vitrifrigo DIY Kit 200/70 PT13 + ND50ORV | 200L Fridge or 70L Freezer

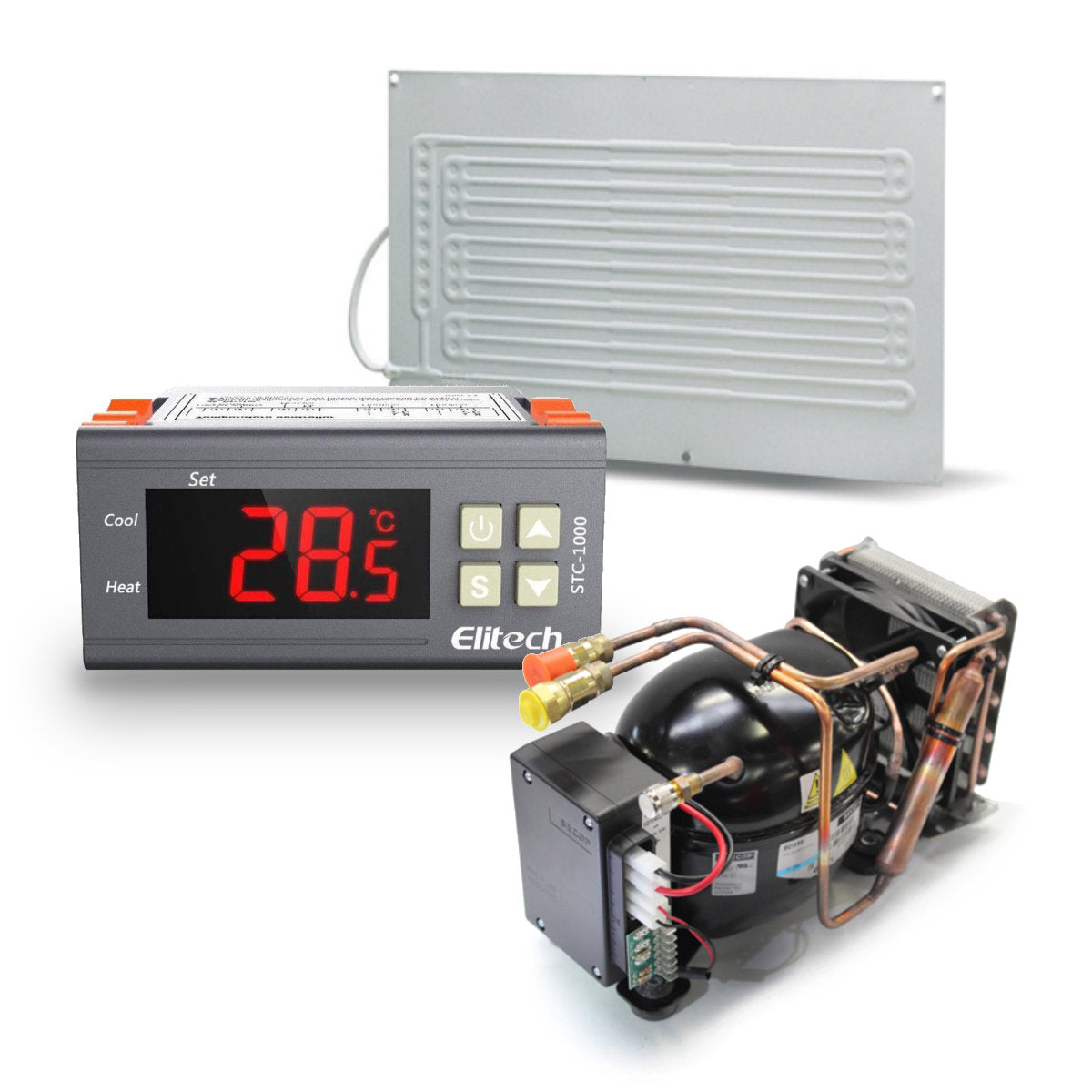

This Vitrifrigo DIY Kit is made up of the PT13 flat evaporator plate, ND50ORV Cooling Unit, and digital thermostat.
This Kit is suitable for a 200L Fridge or 70L Freezer.
IN STOCK NOW

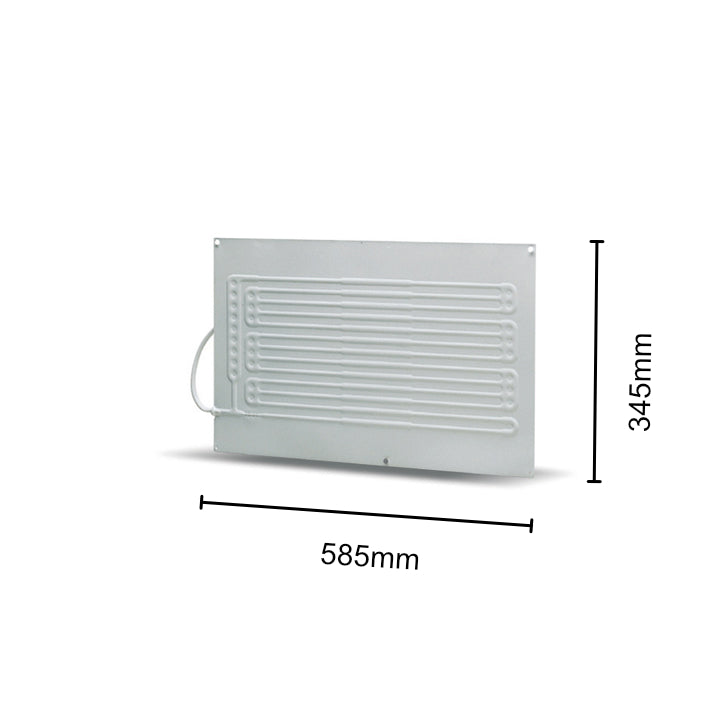

PT13 Flat Evaporator
Flat evaporators can be easily installed and provide a multitude of different cooling requirements, due to the ability to bend them to fit into the refrigerated compartment. When installing, always use the stand-offs and provided holes in the plate evaporator.
Width: 585mm
Height: 345mm

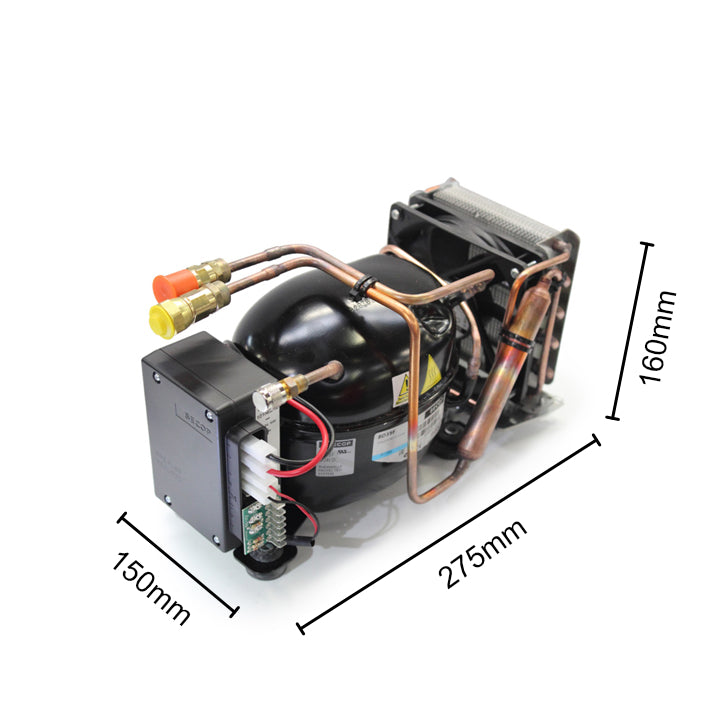

ND50ORV Cooling Unit
Width: 275mm
Height: 160mm
Depth: 150mm
Digital Thermostat
DIY Tips & Tricks
- A well insulted box with minimum 50mm wall thickness is recommended.
- Top loading configurations enable maximum cool to be retained when opened and closed frequently.
- The door must be well sealed to prevent the evaporator plate icing up.
- The compressor needs to be well ventilated for optimum performance.
PLEASE CHECK STOCK BEFORE ORDERING 1300 668 293
