Nova Kool RFU9200 12-24 Volt - 258 Litre - Upright Two Door Fridge/Freezer - DUAL Danfoss BD35F Compressor - Independant Thermostatic Control (RFU9200)
- Description
Nova Kool RFU9200 12-24 Volt - 258 Litre - Upright Two Door Fridge/Freezer - DUAL Danfoss BD35F Compressor - Independant Thermostatic Control (RFU9200)
Nova Kool RFU9200 - 258 Litre Upright Fridge/Freezer
Two Right Hand Hinged Black Door Panels with Black Frame (Standard)

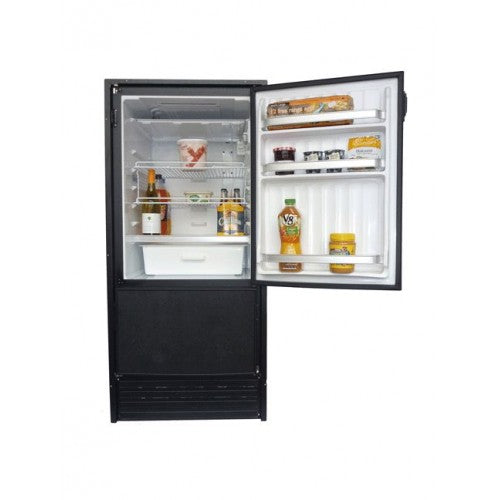

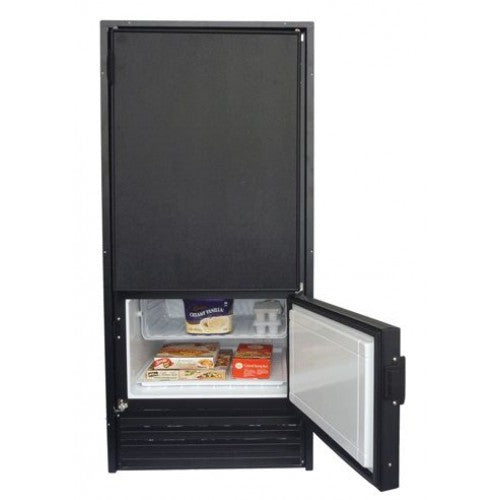

188 Litre Fridge on Top and 70 Litre Freezer on the Bottom
*** RFU9200 powered by Two Danfoss BD35F Compressors - Excels in high ambient temperatures ***
Independent Thermostatic Control of Fridge and Freezer
Ask us for a quote - we can ship Australia wide!!
The RFU9200 is the latest innovation from the Nova Kool team. Most DC refrigeration systems employ a single compressor and thermostat so the freezer temperature is dependent on the fridge setting. The RFU9200 employs a dual compressor system allowing independent operation of the the fridge and freezer compartments. More precise temperature control and colder freezer temperatures are the key benefits of a dual compressor system.
Each compressor draws approximately 5 amps when running on 12 volts DC: average power use will vary depending on ambient temp. how often the door is opened etc. but overall power useage will be similar to comparably sized single compressor fridge freezers once initial operating temperatures are reached.
Fridge and freezer can be operated independently of each other so if there is no food in the freezer it can be shut down to save power etc.
Nova Kool Refrigerators and Freezers are equipped with a highly efficient variable speed Danfoss BD50 series compressor (fan included) that is designed to run even while you are listed at a 30°C angle.
Volume:
- 258 Litres Total Internal Volume:
- 188 litres of fridge space at the top where everyday items are easy to reach. The 70 litre freezer space is on the bottom.
- 1343 mm (H) X 591 mm (W) x 605/610 mm (D)
Features:
-
2 x BD35F Danfoss Compressors
-
Fridge and freezer can be operated independently of each other so if there is no food in the freezer it can be shut down to save power
-
Ventilation built in at the bottom
-
Mounting flange included
-
Comes standard with black door panels
-
white door panels are an option
-
- Positive latch system
-
Storage for tall bottles
-
Shelves are a powder coated wire for durability
-
Reversible door swing (Come Standard as RHH)
-
Replaceable door panels for a custom finish to your interior
-
Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
-
Environmentally sound 134a refrigerant
-
CFC free urethane foam in cabinet and doors
-
Magnetic door gaskets for positive seal
-
Stainless fasteners & hinges used throughout
-
Maintenance friendly
- 2 x Fan forced condenser
-
Low battery protection to help prevent full discharge of batteries
- All Nova Kool units can add the AC/DC Module as an optional extra if required
- Compressor Fan - fitted
- Interior Light - fitted - (FRIDGE ONLY)
Options:
- Standard with Right Hand Hinge Configuration. Left Hand Hinge available on request at no extra charge. The hinge side is user configurable, however, let us know your preference at the time of order and we can have the change made at factory prior to shipping/pick-up.
Specifications
| Volume |
Weight: 56kg's |
Compressor: Danfoss BD35F x (2) Control Module: Danfoss 101N0210 x (2)Total volume: 258 litres ( 9.1 cu.ft. ) |
Fridge space: 188 litres Freezer space: 70 litres |

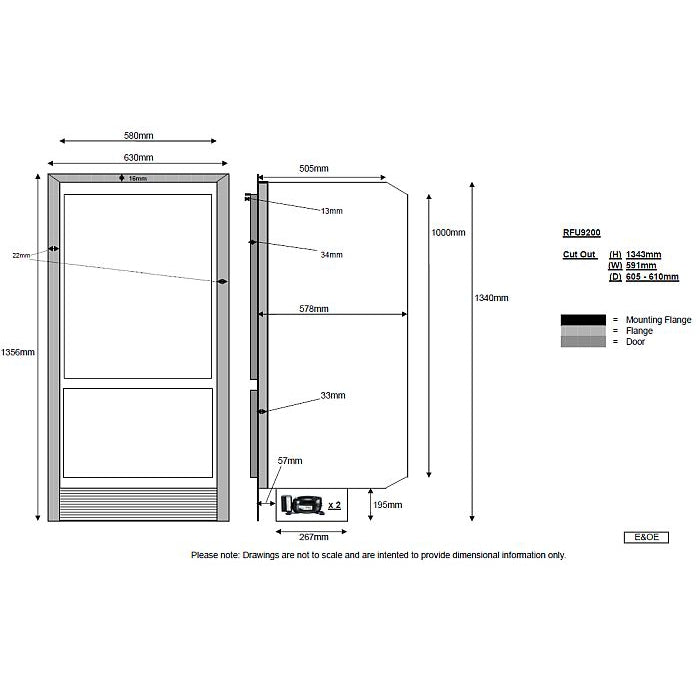

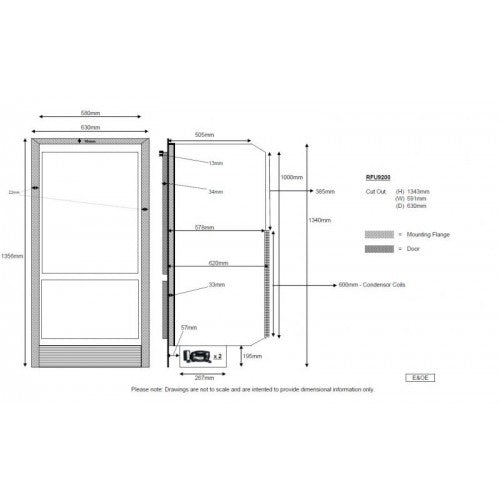

| Cut Out Dimensions |
1343mm Height |
591mm Width |
605/610mm Depth |
|
Overall dimensions (Including flange) |
1356mm Height |
630mm Width |
578mm behind frame |
Note on door swing:
If you require a left hand door swing (hinge on the left) please specify this requirement when ordering and we will change this for you: there is no charge for this service.
Downloads:
