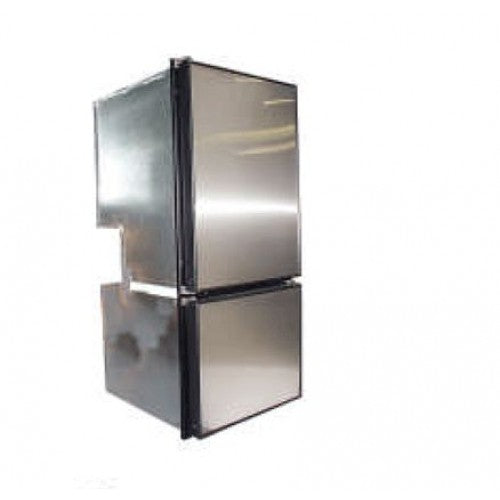

Nova Kool RFU6809 12-24 Volt - 173L - Upright Marine Fridge/Freezer - Danfoss BD50F Compressor - Suitable for Boats, Caravans, Motorhomes and RVs (RFU6809)
- Description
Nova Kool RFU6809 12-24 Volt - 173L - Upright Marine Fridge/Freezer - Danfoss BD50F Compressor - Suitable for Boats, Caravans, Motorhomes and RVs (RFU6809)
** NEW ** Nova Kool RFU6809 - 173 Litre Upright Fridge/Freezer
Two Right Hand Hinged Black Door Panels with Black Frame (Standard)
123 Litre Fridge on Top and 50 Litre Freezer on the Bottom
*** NEW Improved Model ***
Now unit comes with the larger BD50 compressor, Improved insulation in the freezer along with Dual evaporator cooling plates to improve performance
Nova Kool Refrigerators and Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor (fan included) that is designed to run even while you are listed at a 30°C angle.
Power draw is less than 5.5 amps when running on 12 volts: average power use will vary depending on ambient temp. how often the door is opened etc. but you can expect approx. 50 amp to 60+amp hours per day at 30°C ambient temperature.
- 173 Litres Total Internal Volume:

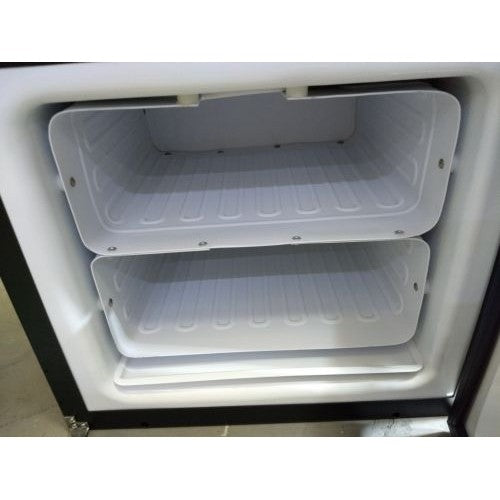

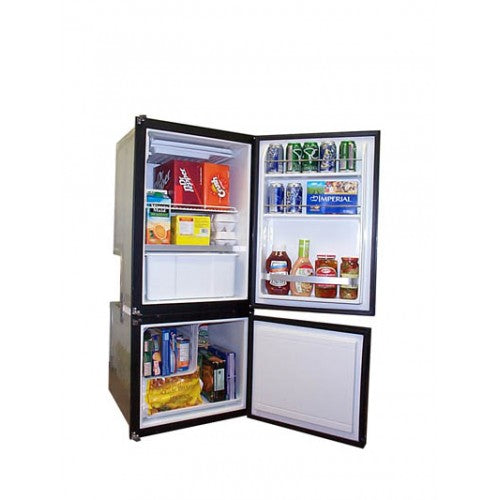

- 123 litres of fridge space at the top where everyday items are easy to reach. The 50 litre freezer space is on the bottom.
- 1203 mm (H) X 514 mm (W) x 600 mm (D)
Features:
- ** NEW ** Danfoss BD50F Compressor
- ** NEW ** Dual evaporator cooling plates in the freezer plus extra thick insulation for improved performance
- Mounting flange included
- Comes standard with black door panels

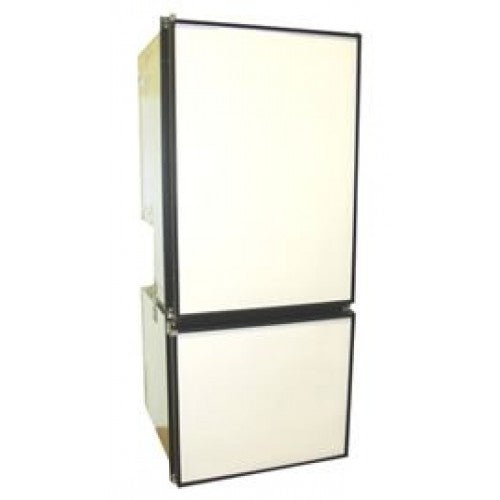

- white door panels are an option
- Positive latch system
- Storage for tall bottles
- Shelves are a powder coated wire for durability
- Reversible door swing (Come Standard as RHH)
- Replaceable door panels for a custom finish to your interior
- Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
- Environmentally sound 134a refrigerant
- CFC free urethane foam in cabinet and doors
- Magnetic door gaskets for positive seal
- Stainless fasteners & hinges used throughout
- Maintenance friendly

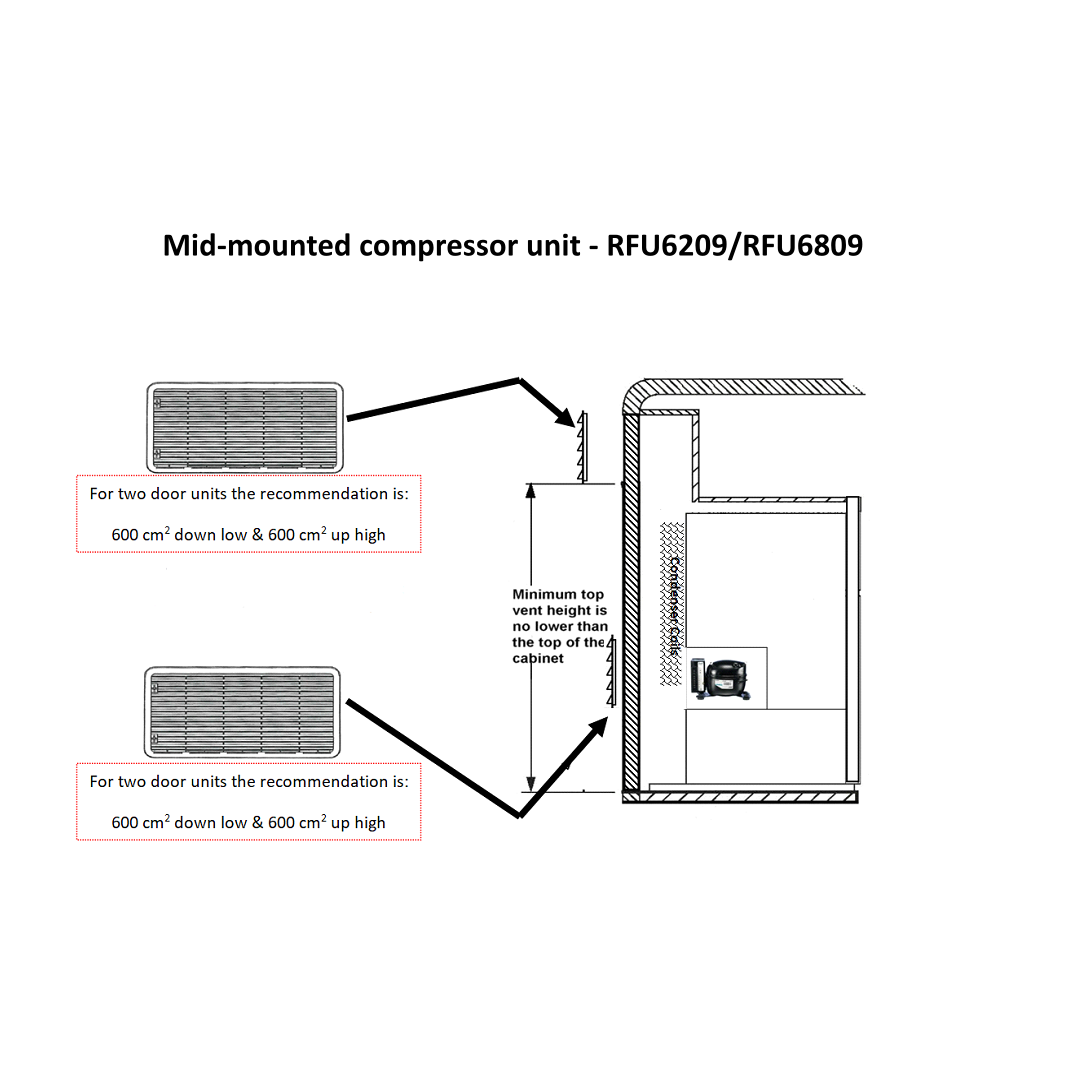

- 2 x Fan forced condensers
- Low battery protection to help prevent full discharge of batteries
- All Nova Kool units can add the AC/DC Module as an optional extra if required
- Compressor Fan - fitted
- Interior Light - fitted (FRIDGE ONLY)
Options:
- Standard with Right Hand Hinge Configuration. Left Hand Hinge available on request at no extra charge. The hinge side is user configurable, however, let us know your preference at the time of order and we can have the change made at factory prior to shipping/pick-up.
Specifications
Danfoss BD50F Compressor
| Volume |
Weight: 43kg's |
173 litres (6.2 cu.ft. ) total volume |
Fridge space: 123 litres Freezer space: 50 litres |

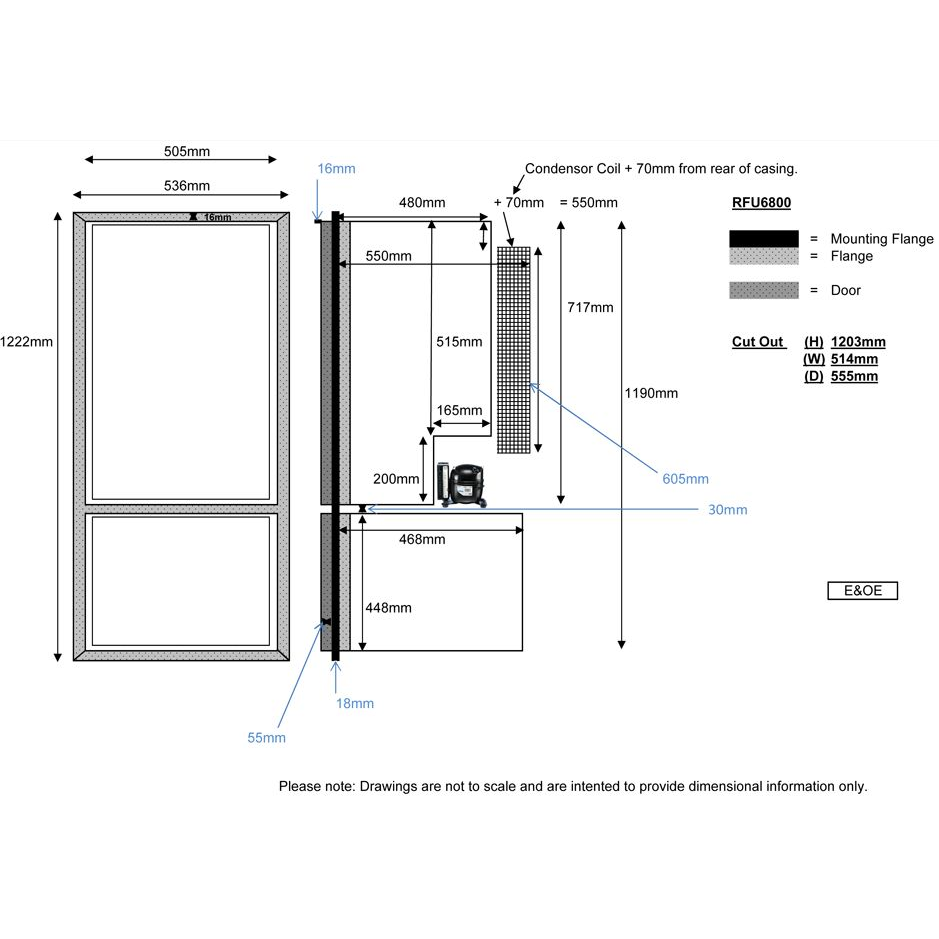

| Cut Out Dimensions |
1203 mm Height |
514 mm Width |
600 mm Depth (measured from the back face of the mounting flange ) |
|
Overall dimensions (Including flange) |
1228 mm Height |
532 mm Width |
625 mm Depth (including door and latch handle)
|
