Nova Kool R5819DC 12-24 Volt 162L Marine Fridge/Freezer - Single S/S Door - Suitable for Boats, Caravans, Motorhomes and RVs (R5810DC)

Nova Kool R5819DC 12-24 Volt 162L Marine Fridge/Freezer - Single S/S Door - Suitable for Boats, Caravans, Motorhomes and RVs (R5810DC)

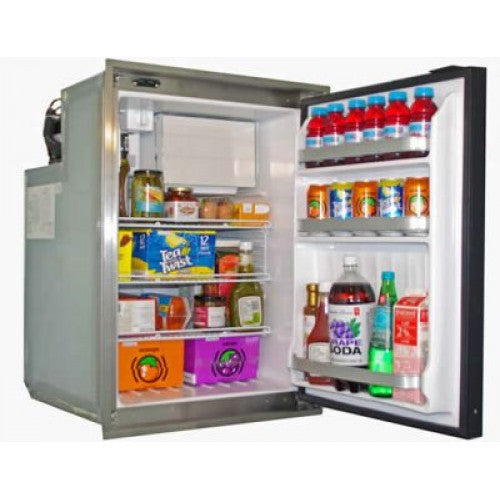

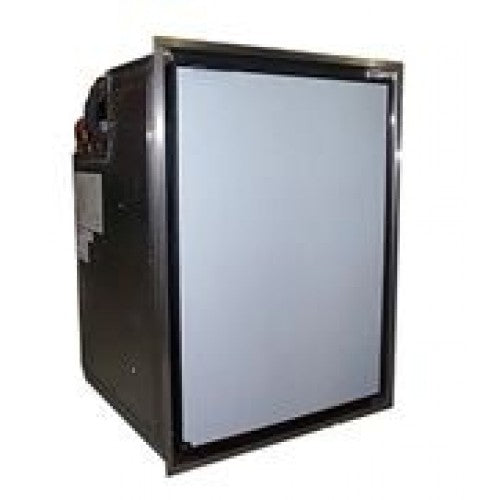

Nova Kool R5810 - 162 Litre Fridge/Freezer

Single Brushed Stainless Steel Door Panel and Stainless Steel Frame

149 Litre Fridge with 13 Litre Freezer Compartment

Ask us for a quote - we can ship Australia wide!!

When the compressor is running, the R5819 draws only 4.4 amps @ 12 Volts DC - less than 0.5 amps on the 120VAC option. All Nova Kool Refrigerators and Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor that is designed to run even while you are listed at a 30° angle. Average power use will vary depending on ambient temperature and how often the door is opened etc. but you can expect the R5810 to use less than 45 amp hours per day at 30C ambient temperature.

Volume:

• 162 Liters Total Internal Volume
• 149 litres of fridge space with 13 litre freezer box

Cut Out Dimensions

• 805 mm (H) X 587 mm (W) x 560 to 605 mm (D)*
• *Note: This fridge has an adjustable frame for depth, please see specifications below for details.
• This model has a stainless steel flange included.

Other Matching 162 Litre Single Stainless Steel Door Configurations

• R5819 - Fridge/freezer version (13L freezer box at the top)
• F5819 - All freezer version
• R5812 - All fridge version (no freezer box at the top)

Features:

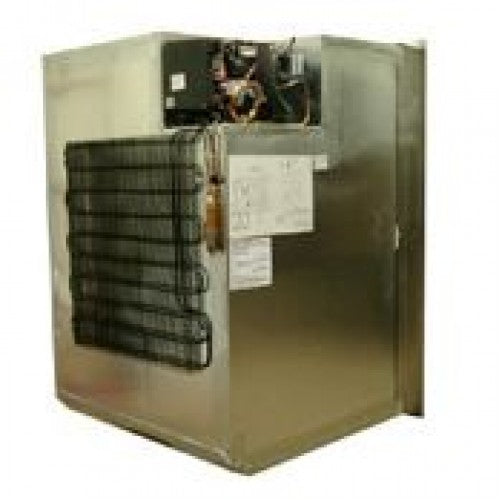

• Highly efficient variable speed Danfoss BD Series compressor (fan included) that is designed to run well even at very high ambient temperatures and at angles up to 30° off level.
• Supplied standard with brushed stainless steel door panels and stainless steel frame.
• Door swing is right hand as standard but this can be changed prior to shipping or you can change this easily yourself.
• Positive latch system
• Storage for tall bottles
• Reversible door swing
• Replaceable door panels for a custom finish to your interior
• Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
• Environmentally sound 134a refrigerant
• CFC free urethane foam insulation in cabinet and doors
• Magnetic door gaskets for positive seal
• Stainless fasteners & hinges used throughout
• Maintenance friendly & efficient static condenser
• Low battery protection to help prevent full discharge of batteries
• Strongest mounting flanges in the industry - Stainless Steel.
• Made in Canada
• All Nova Kool units can add the AC/DC Module as an optional extra if required
• Compressor Fan - fitted
• Interior Light - fitted

Options:

• Standard with Right Hand Hinge Configuration. Left Hand Hinge available on request at no extra charge. The hinge side is user configurable, however, let us know your preference at the time of order and we can have the change made at factory prior to shipping/pick-up.

Specifications

*Note: This fridge has an adjustable frame for depth. With the flange adjustment forward the door is flush with the flange and depth behind is 605mm or when adjusted back the door is forward of the flange and depth is reduced to 560mm behind the  flange.

The frame has a 12mm flange on the left and right side and a 5mm flange on the bottom with a 13mm flange on the top. By removing the 12 frame screws you can also rotate the mounting flange so the top is 5mm and the bottom is 13mm. This allows for lower counter height installations.

Downloads:

• Installation and Troubleshooting Guide
• Preferred Ventilation Location and Size
• NovaKool Specifications and Dimensions
