Nova Kool LT211-RT6 Refrigeration Kit With BDF50 Compressor - 12V to 24V - For 15L Freezer Box (included) in Large Fridge (LT211-RT6)
- Description
Nova Kool LT211-RT6 Refrigeration Kit With BDF50 Compressor - 12V to 24V - For 15L Freezer Box (included) in Large Fridge (LT211-RT6)
Nova Kool LT211-RT6 - (Based on 100mm Foam Insulation)
The Nova Kool Build-In LT211 series of units and plates are designed with ease of installation built into each component. These refrigeration kits are simple by design, with less moving parts than most other refrigeration systems.Nova Kool kits come complete with everything you need to build your own fridge or fridge / freezer - whether as a complete new unit or converting a cool box.
Standard LT211 accepts DC 12 volt or 24 volts. You can add the optional Danfoss AC/DC module for multi-voltage operation 12 volt DC, 24 volt DC and 100-240 volts AC 50/60HZ with automatic switching to AC power when available.

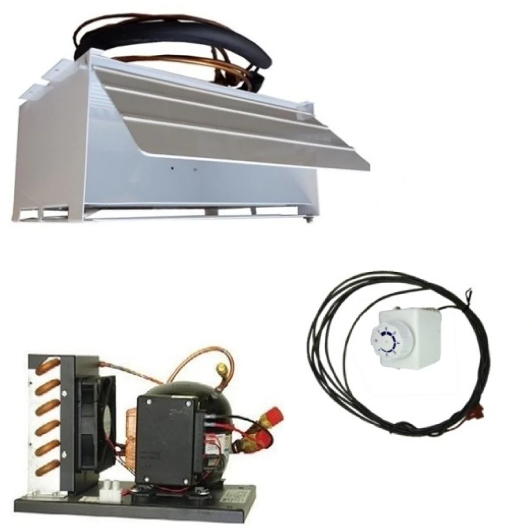

Choose a cooling plate kit to fit your application, then add the compressorised cooling unit to complete the installation. All Nova Kool kits include a thermostat, and pre-charged refrigeration lines, as well as an assortment of mounting hardware.
Pre-charged with refrigerant requiring no purging, or expensive professional help required: Just add power and let the cooling begin!
Great for Freezers, Refrigerators and Fridge/Freezer box combinations.
Overview:
- Suit Box: Has a small (15 litre) freezer box to go inside a large fridge box area
- Compressor: Danfoss BD50F compressor
- Condenser: Multi-fin radiant with fan
- Evaporator Plate Set: RT6 freezer box with door 356mm L x 172 mm H x 280 D
- Connections: Reuseable quick connects
- Voltage DC only: 12 & 24vdc standard, optional 10-45 vdc for special applications
- AC/DC: 12 volt & 24 volt dc and 100-240 volts ac 50/60HZ option available
- Power consumption: Variable 3.5 to 6.5 amps @ 12 volts depending on speed setting
- Refrigerant Charge: Pre-charged with R134a
- Fan: Yes 0.2 amps @ 12 volts
- Compressor Dimensions: 230mm x 280mm and 190mm in Height
Features:
- Efficient Danfoss BD50F compressor
- Self sealing couplings (unit is pre-charged with refrigerant)
- Efficient air cooled condenser, will provide years of simple reliable service in the tropics
- Simple, efficient and reliable rollbond plate evaporators. Can in many cases be bent to conform to your requirements
- Condenser is sized specifically to ensure capacity in the hottest of climates
- Variable speed compressor (adjusted by changing the resistance in control circuit)
- Backed with Nova*Kool's Easy 2 Year Warranty Program on all components
- Environmentally sound 134a refrigerant
- Compressor designed to run continuously on a 30 degree heel
- Low battery protection to help prevent full discharge of batteries
- Low amperage fan included
-
Voltage options
- DC only: 12 & 24vdc standard, optional 10-45vdc for special applications (please contact us!)
- AC/DC: 12 & 24 VDC and 100-240 VAC 50/60HZ option available
