Dometic Cold Machine DIY Kit CU-85 + VD-05 100/35L

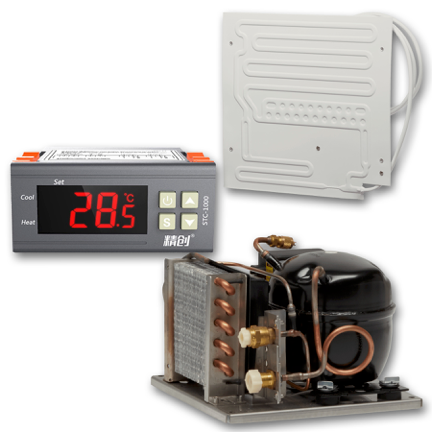

This Dometic Cold Machine  DIY Kit is made up of the CU-85 cooling unit, VD-05 plate evaporator, and digital thermostat.

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

Dometic ColdMachine CU-85 – Cooling Unit (SKU 9105306598)

A versatile compressor-based cooling unit that serves as the heart of custom refrigeration solutions for marine, RV, van conversion, and off-grid projects. Designed for reliable performance and flexible compatibility with a range of evaporators, the CU-85 delivers professional-grade cooling in a compact package.

Specifications:

• Model / SKU: CU-85 / 9105306598
• Product Type: Cooling unit (compressor)
• Voltage: 12 V / 24 V DC
• Rated Input Power (DC): ~45 W
• Refrigerant: R134a (contains fluorinated greenhouse gases; GWP 1430)
• Refrigerant Amount: ~45 g
• CO₂ Equivalent: ~0.064 t
• Cooling Capacity: Up to 100 L (refrigeration) or 30 L (freezer with direct evaporator)
• Dimensions (W × H × D): 220 × 160 × 220 mm
• Net Weight: ~6 kg
• Climate Class: T (EN 62552)

Dometic ColdMachine VD-05 Plate Evaporator — Slim, versatile evaporator plate compatible with Series 80 systems like the CU-84. Designed for fridge compartments up to ~100 L, it installs vertically or horizontally and comes with an external thermostat and quick-connect fittings for precise temperature control.

Specifications:

• Model / SKU: VD-05 / 9105306605
• Compatible With: Series 80 cooling units (e.g., CU-84)
• Voltage: 12 V / 24 V DC
• Cooling Capacity: up to ~100 L (with 50 mm insulation)
• Dimensions (W × H × D): 375 × 350 × 25 mm
• Weight: ~1.5 kg
• Features: External thermostat with LED indicator, self-sealing valve couplings for easy in
