DC Fridge DIY Kit CU84 + VD05 100/35L

The DC Fridge CU84 + VD05 is a DIY refrigeration kit for a 100L fridge or 35L freezer, pairing a cooling unit with an evaporator plate for boats, caravans and RVs.

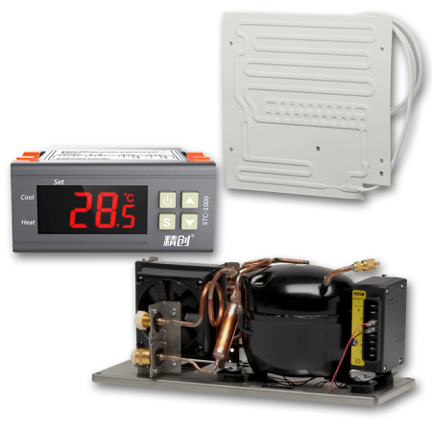

This Dometic Cold Machine DIY Kit is made up of the CU-84 cooling unit, VD-05 evaporator cooling plate, and digital thermostat.

NOTE: THIS KIT CAN BE CHANGED TO A MECHANICAL THERMOSTAT IF REQUIRED

Dometic ColdMachine CU-84 Cooling Unit (12/24 V DC) — Powerful compressor-based cooling designed for medium-sized refrigerators up to ~100 L. Engineered for quiet, economical operation and durability in warm conditions, this horizontal-design unit includes pre-charged refrigerant and self-sealing valve couplings for easier installation.

Specifications

• Cooling Capacity: up to approx. 100 L
• Freezer Capacity: up to approx. 35L (with direct evaporator)
• Dimensions (W × H × D): 386 × 160 × 130 mm
• Weight: ~6 kg

Dometic ColdMachine VD-05 Plate Evaporator — Slim, versatile evaporator plate compatible with Series 80 systems like the CU-84. Designed for fridge compartments up to ~170 L, it installs vertically or horizontally and comes with an external thermostat and quick-connect fittings for precise temperature control.

• Cooling Capacity: up to ~170 L (with 50 mm insulation)
• Dimensions (W × H × D): 375 × 350 × 25 mm
• Weight: ~1.5 kg
